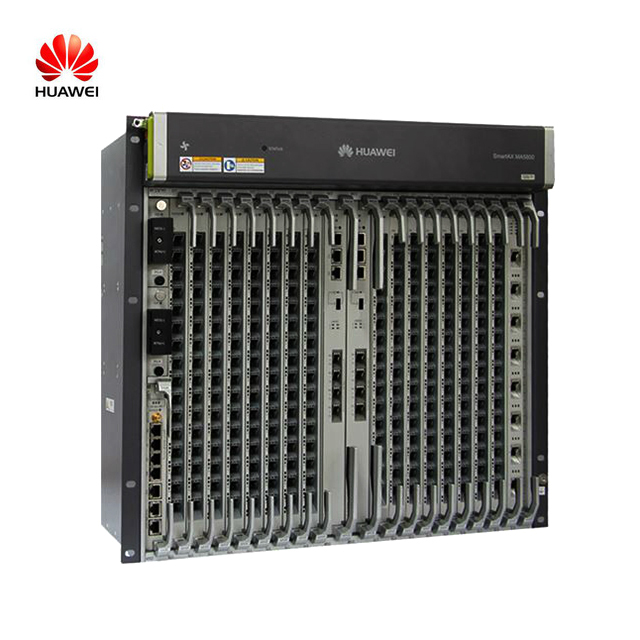

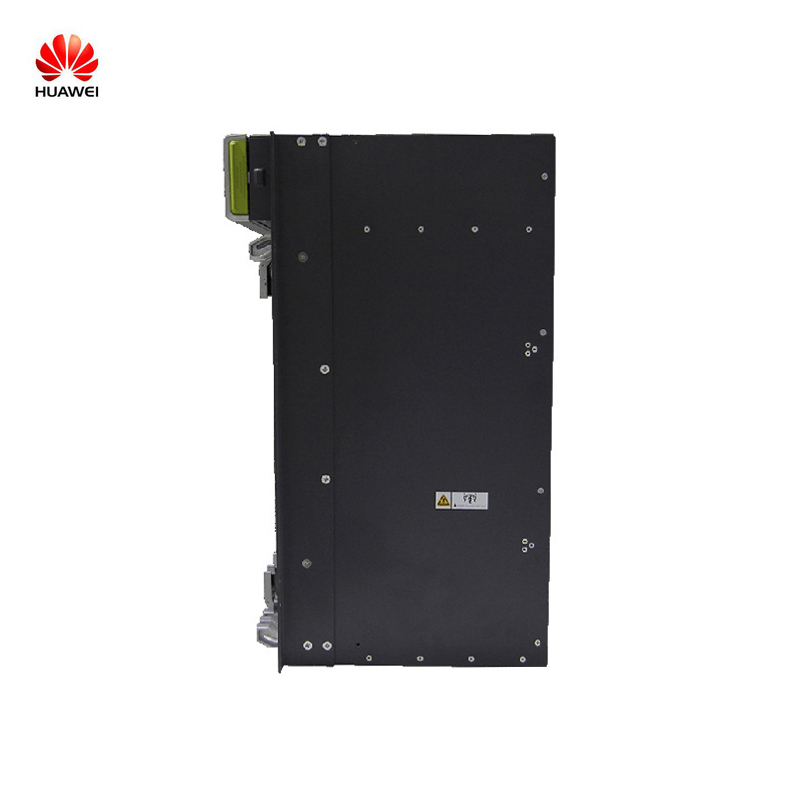

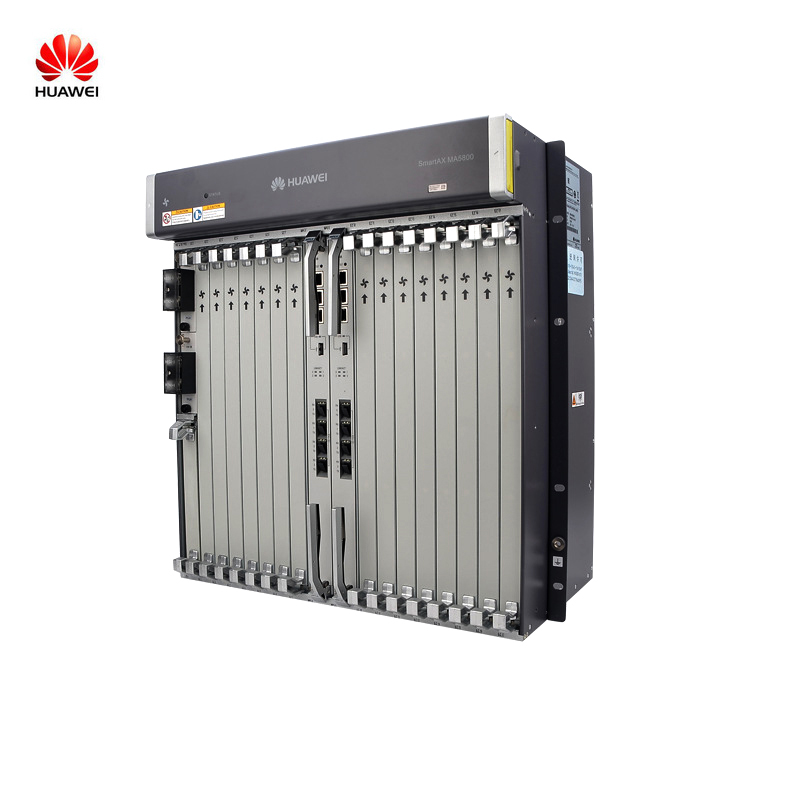

Huawei OLT MA5800X17
Brand Name：Huawei
Product Name：OLT
Model Number：Ma5800-X17
GPON/XG(S)- PON ports：16*17=272
10GE/GE ports：8*10GE/GE
Dimensions：11 U (height) 21 inch (width)
Weight(KG)：about 22
Online
Product Name：OLT
Model Number：Ma5800-X17
GPON/XG(S)- PON ports：16*17=272
10GE/GE ports：8*10GE/GE
Dimensions：11 U (height) 21 inch (width)
Weight(KG)：about 22
- Product details
SmartAX MA5800
Full-service distributed architecture OLT
Building a convergence access network that is green,
ultra-broadband, and intelligent
.The MA5800 series multi-service access device is the first OLT in the industry with distributed architecture, and it provides a unified
carrying platform for multiple services, such as broadband, wireless, video, and monitoring.
.The MA5800 provides GPON, XG-PON, XGS-PON, and 10GE/GE access, and supports POL, FTTH, FTTB, and FTTC network
construction modes. It carries all services over one fiber network, simplifying network architecture and reducing OPEX.
*.The MA5800 supports capacities for large, medium, and small products, meeting requirements in different scenarios.
carrying platform for multiple services, such as broadband, wireless, video, and monitoring.
.The MA5800 provides GPON, XG-PON, XGS-PON, and 10GE/GE access, and supports POL, FTTH, FTTB, and FTTC network
construction modes. It carries all services over one fiber network, simplifying network architecture and reducing OPEX.
*.The MA5800 supports capacities for large, medium, and small products, meeting requirements in different scenarios.
|
Distributed Architecture
|
High Reliability
|
| Service processing, previously centered on the control board, is now distributed to every service board. The system switching capacity and performance are improved, with the throughput of a single slot reaching up to 200 Gbit/s. This ensures smooth services and supports faster HD video startup and channel zapping. | Type B/Type C dual-homing implements remote disaster recovery backup protection by configuring two control boards and two power boards for redundancy backup. Additionally, multiple uplinks are configured for protection. |
 |
 |
|
ISSU
|
Integrated Multiple Access Technologies
|
| In distributed architecture, control and forwarding are isolated, ensuring that services are not interrupted during device upgrades. This also reduces user complaints. Devices can even be upgraded during working hours. | Supports PON and P2P access, and carries all services over one fiber network, simplifying network architecture and reducing investments. |
 |
 |
|
Product
|
 |
 |
 |
 |
|---|---|---|---|---|
|
Indicator |
MA5800-X17
11 U (height), 21 inch (width)
|
MA5800-X15
11 U (height), 19 inch (width)
|
MA5800-X7
6 U (height), 19 inch (width)
|
MA5800-X2
2 U (height), 19 inch (width)
|
|
Control board switching
capacity
|
7 Tbit/s | 248Tbit/s | ||
|
Maximum bandwidth per slot
|
200 Gbit/s | 40 Gbit/s | ||
|
Number of concurrent 4K
video users
|
16000 | 16000 | 8000 | 2000 |
|
Power supplymode
|
DC Power supply(dual for backup) |
• DC Power supply(dual for backup) • AC Power supply+battery |
||
|
Rated voltage
|
-48V/60V |
• DC Power supply:-48V/60V • AC Power supply:110V/220V |
||
|
Ambient temperature
|
-40°C to +65°C* (normal operation), minimum startup temperature: -25°C *65°C indicates the temperature of the air intake vent of the service subrack. |
|||
|
GPON/XG(S)-
PON ports
|
16*17=272 | 16*15=240 | 16*7=112 | 16*2=32 |
|
Upstream ports
(Double control boards for upstream transmission)
|
8*10GE/GE
|
8*10GE/GE
|
8*10GE/GE
|
4*GE + 4*10GE/GE
|
