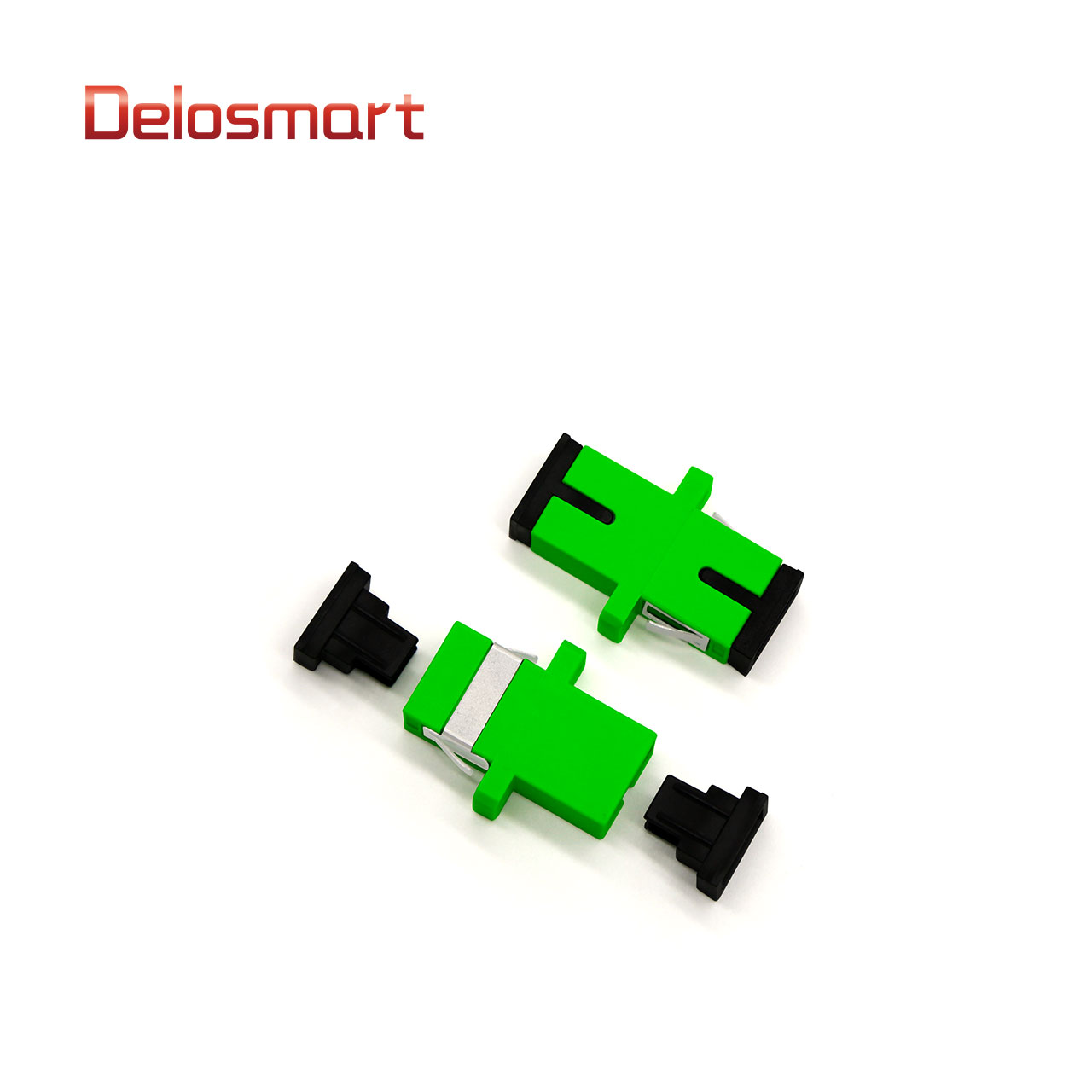

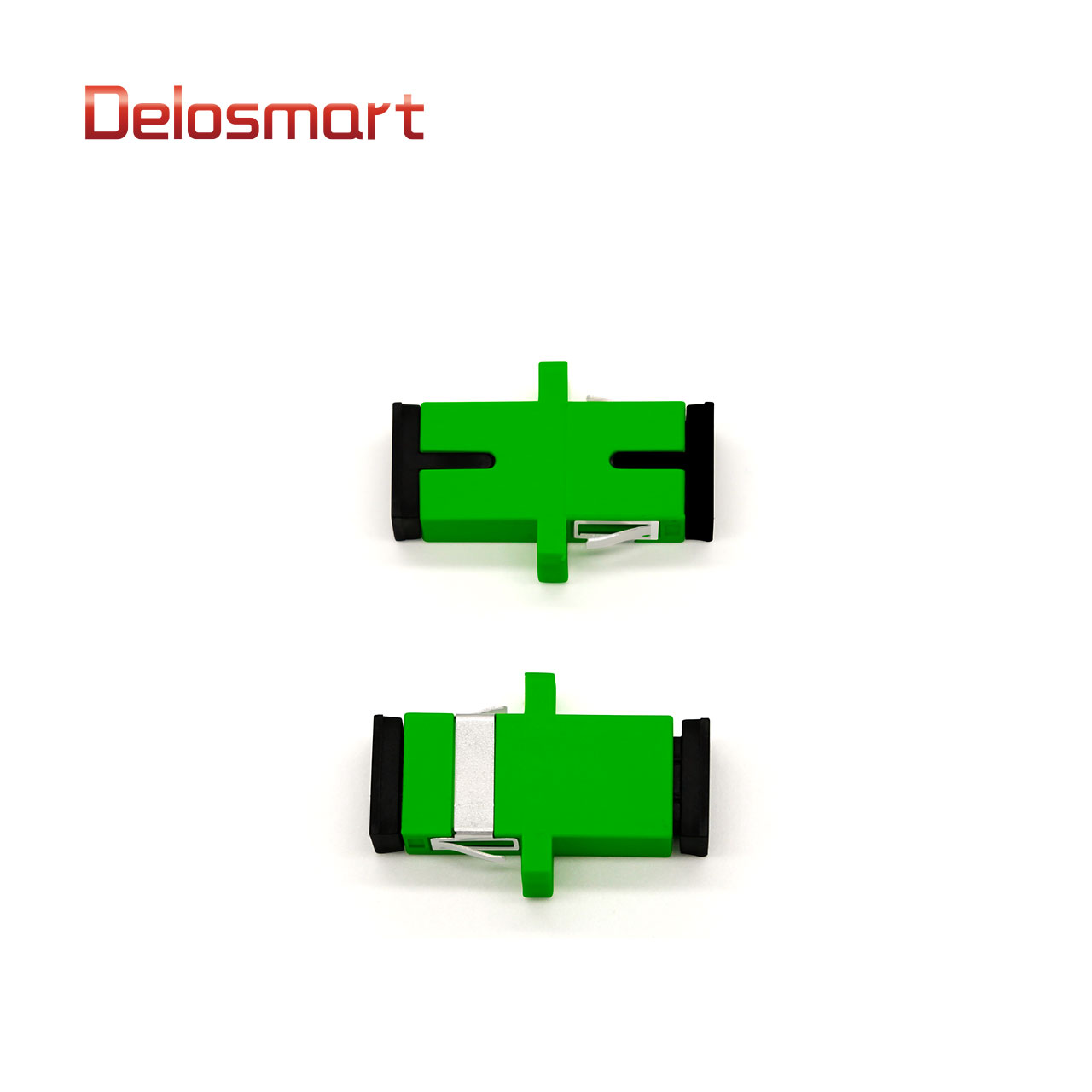

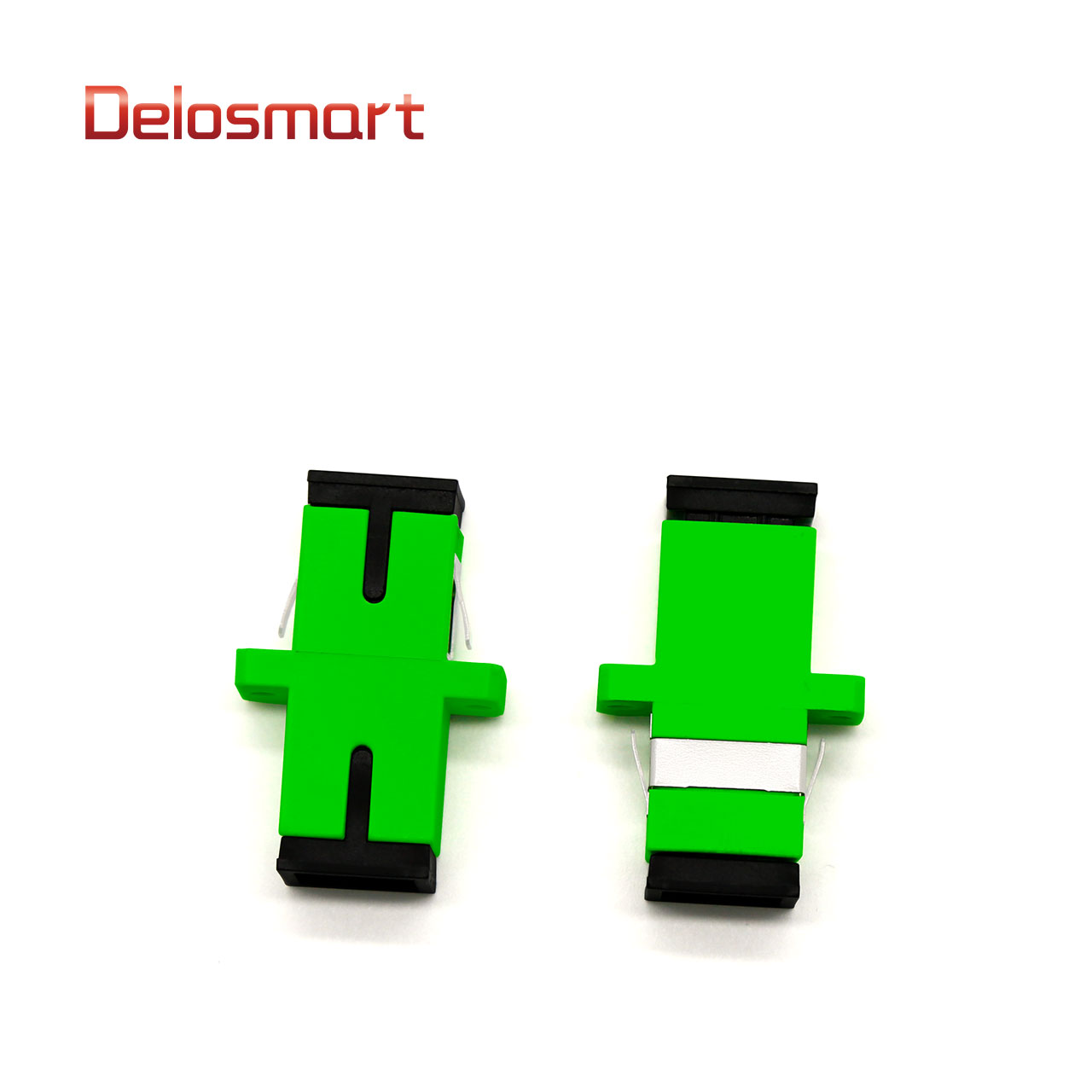

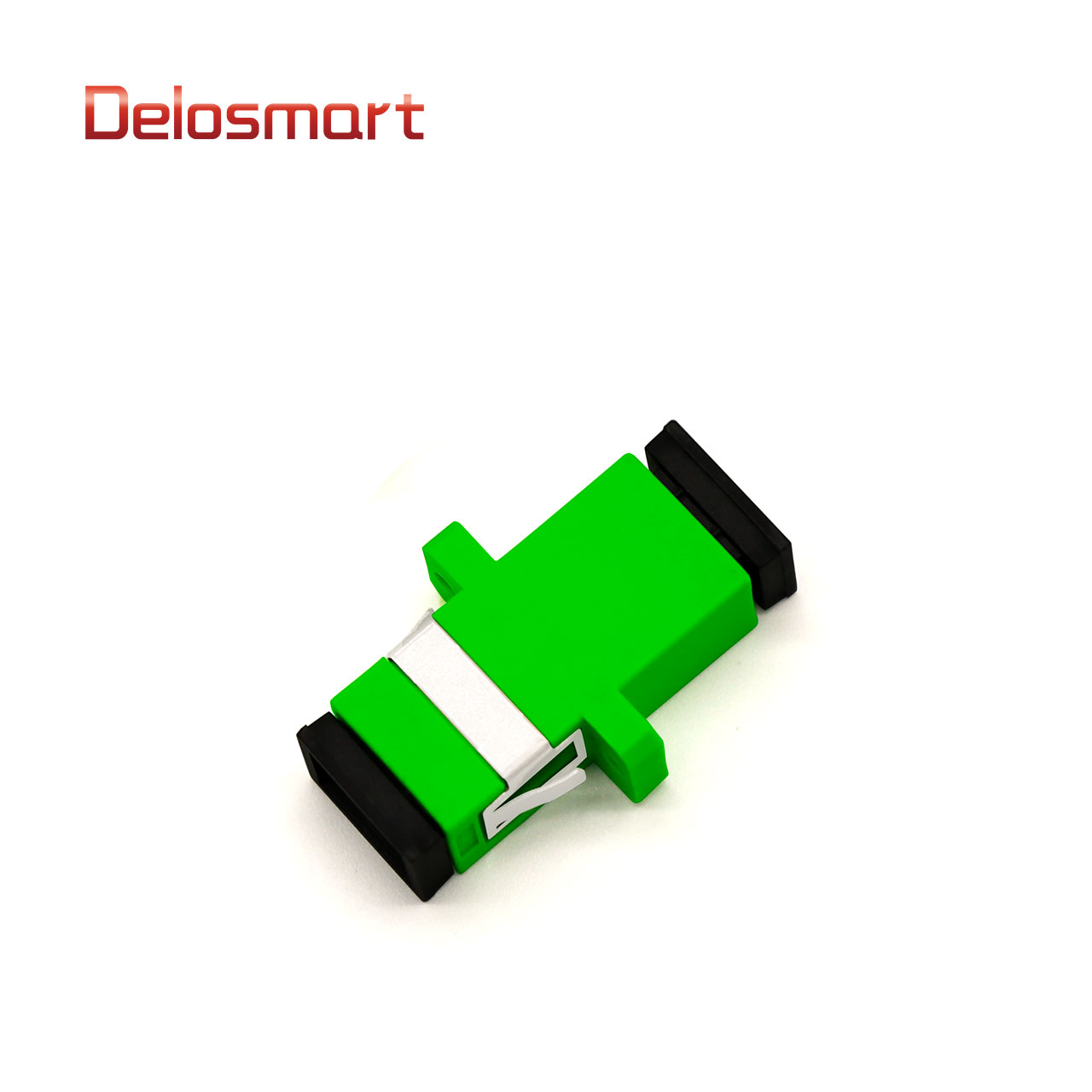

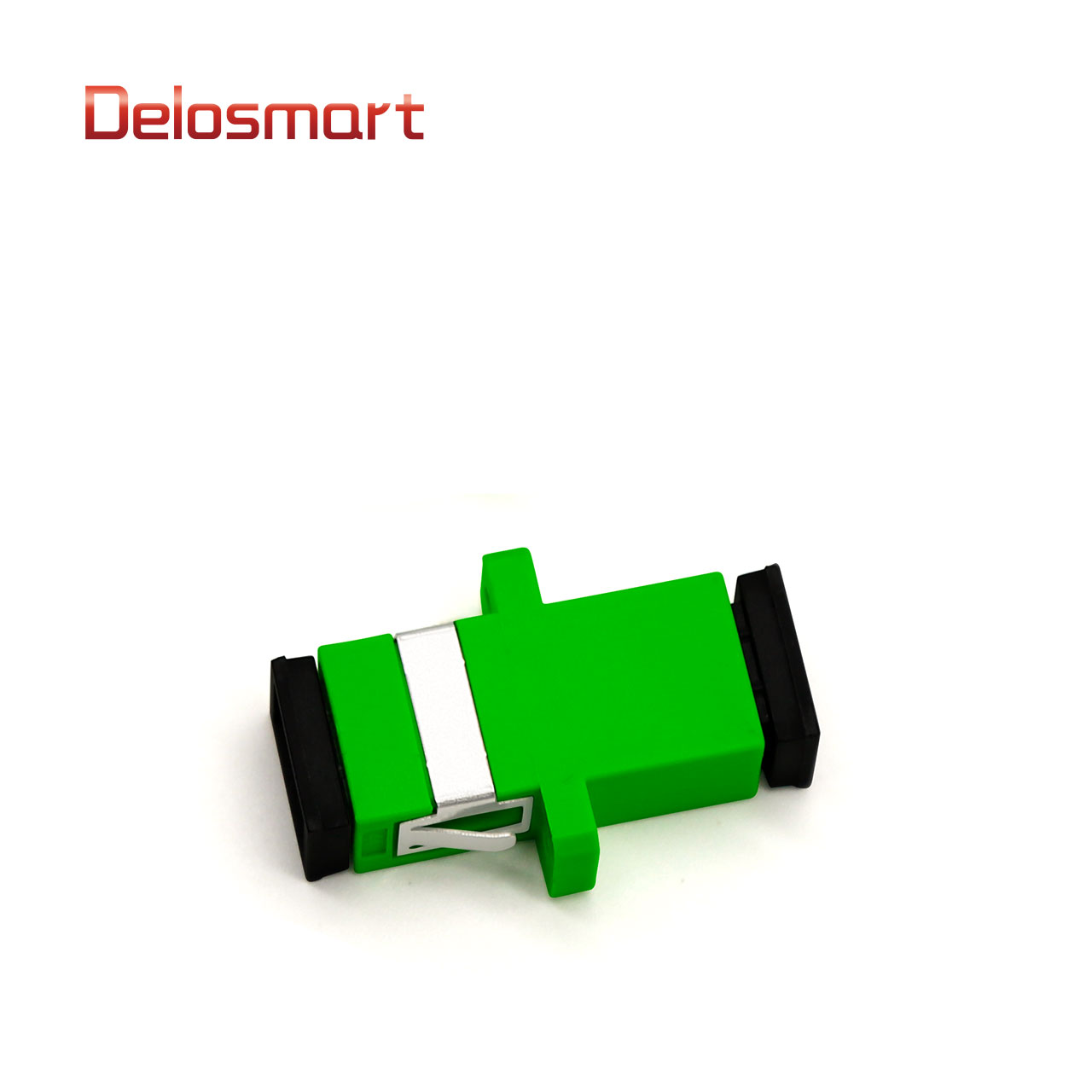

SC/APC welding with ear black flat head flange adapter
Brand Name：Delosmart
Product Name：Fiber Optic Adapter
Model Number：SC-APC
Sleeve:Zirconia Leramic
Insertion loss (dB):<0.2
Duration:>1000 times
Online
Product Name：Fiber Optic Adapter
Model Number：SC-APC
Sleeve:Zirconia Leramic
Insertion loss (dB):<0.2
Duration:>1000 times
- Product details
| Item | Specification | ||||
| Connector Type | FC, SC, ST, LC etc. | ||||
| Fiber Mode | SM | MM | |||
| Polish Type | PC | UPC | APC | PC | |
| Insertion Loss (Typical) | dB | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 |
| Return loss | dB | ≥45 | ≥50 | ≥60 | ≥30 |
| Exchangeability | dB | ≤0.2 | |||
| Repeatability | dB | ≤0.2 | |||
| Durability | Times | >1000 | |||
| Operating Temperature | °C | -40~+75 | |||
| Storage Temperature | °C | -40~+85 | |||
| Core | Simplex | ||||
| Housing Color | Blue, Green | ||||
| Packing quantity | 20pcs or 5pcs or 40pcs | ||||
